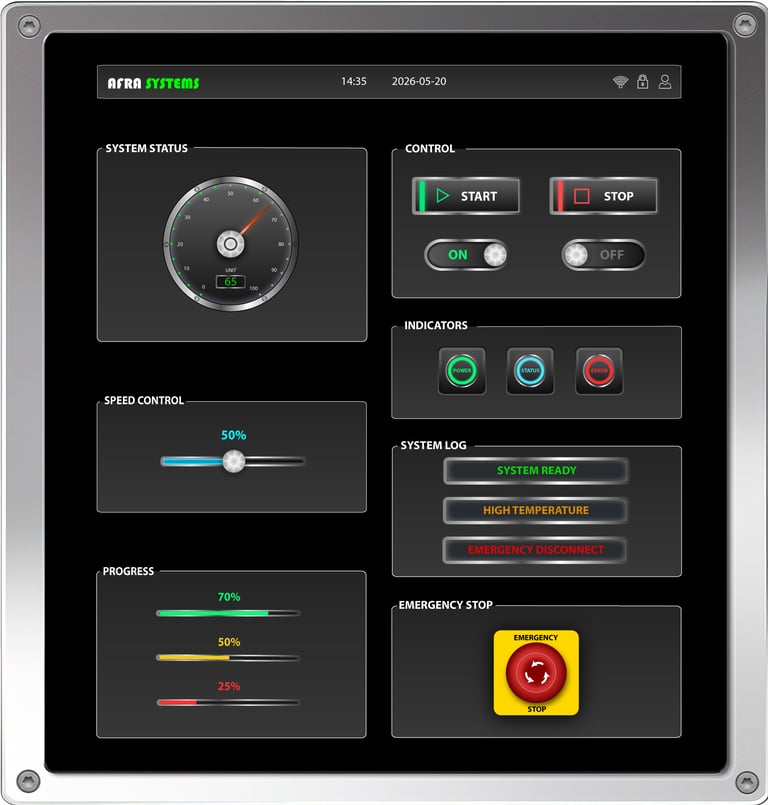

Industrial HMI Design
A comprehensive industrial control panel designed for real-time monitoring and machinery control, focusing on high visibility and skimmability.
Human-Machine Interface & Industrial UI Components

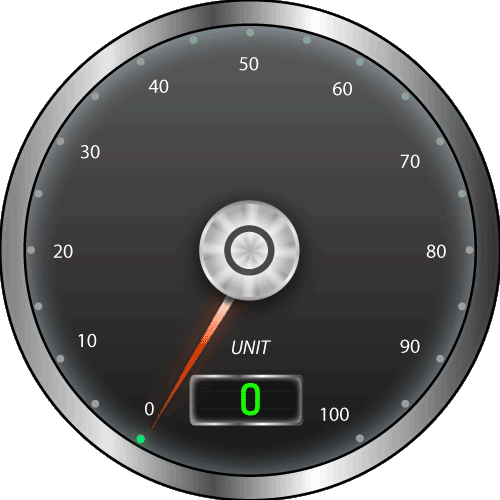

Analog Gauge UI Design
68
A high-fidelity analog gauge designed for critical industrial monitoring. Features a high-contrast scale, an immediate-response needle, and an integrated digital readout to minimize parallax error and ensure optimal operator readability under any conditions.

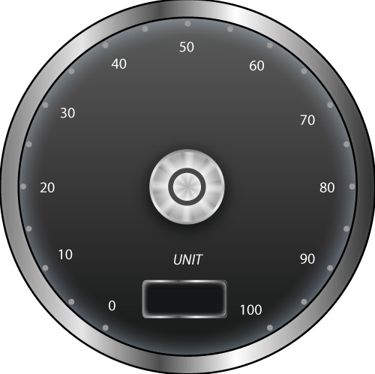

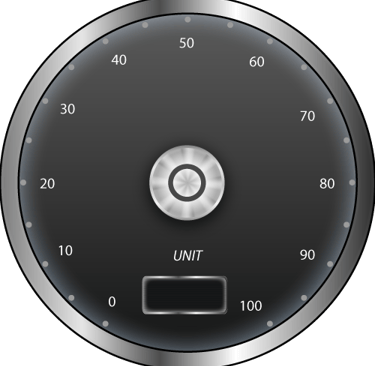

Gauge Base
Gauge Ticks - Normal Range (Green)
Gauge Ticks -Critical Threshold (Red)
Gauge Needle (Pointer)
Micro-interaction
UI Kit & Component Breakdown
Control Elements & Toggles
Micro-interaction
ON State (Active)
OFF State (Inactive)
Normal State
Pressed State
Disabled State
Micro-interaction
Disabled State
Pressed State
Normal State
A modular set of control elements and toggles engineered for high-reliability interaction. Features distinct visual states—including normal, pressed, and disabled configurations—to prevent accidental triggers and ensure unambiguous operator control.
System Status Indicators
Power Indicator
Status Indicator
Error Indicator
Disabled State
Color-coded LED indicators designed for instant visual feedback, tracking power supply, operational health, system faults, and inactive states.
POWER
STATUS
ERROR
Micro-interaction
System Log & Event Messaging
A dynamic system log component featuring color-coded status messaging to classify operational events by severity. Utilizes standard industrial signaling hierarchy to ensure critical alerts instantly capture operator attention while maintaining a clean, structured log feed.
Speed Control Slider
A linear speed control slider featuring a dynamic progress track. Designed with a high-contrast visual fill that illuminates in blue as velocity increases, providing immediate, glanceable feedback on the exact speed level while inactive zones remain muted.
Active Fill Track
Inactive Track
Slider Handle
Micro-interaction
Dynamic Progress Bars
A set of responsive progress bars engineered to provide real-time feedback on system processes or capacity levels. Features a color-coded threshold system—transitioning from critical low to optimal operational states—complemented by clean digital readouts for enhanced readability.
Optimal Level (Safe Zone / High Capacity)
Mid-Range Status (Warning Zone / Moderate Capacity)
Critical Low Level (Action Required / Low Capacity)
Micro-interaction
Emergency Stop (E-Stop) Control
Distinct visualization of the Emergency Stop actuation sequence, featuring the stable released position and the active pressed state. Clear visual feedback is critical for safety-critical components to provide immediate confirmation of operator input.
State 01: Released (Normal Operation)
State 02: Pressed (Active Stop)
